When waterjet shops look for the most economical way to cut parts, used garnet is an obvious question. The abrasive bill is visible, and the spent material in the catcher tank looks like something that might still have value.
The short answer is simple: waterjet garnet can be collected, but it is usually not reused for precision cutting. After one pass through the cutting head and kerf, it is no longer the same controlled abrasive that entered the machine.
Workshop reality
Spent abrasive is not clean dry sand waiting to be poured back into the hopper. In the catcher tank, it becomes a sludgy mix of broken garnet, water, metal fines and workpiece debris.

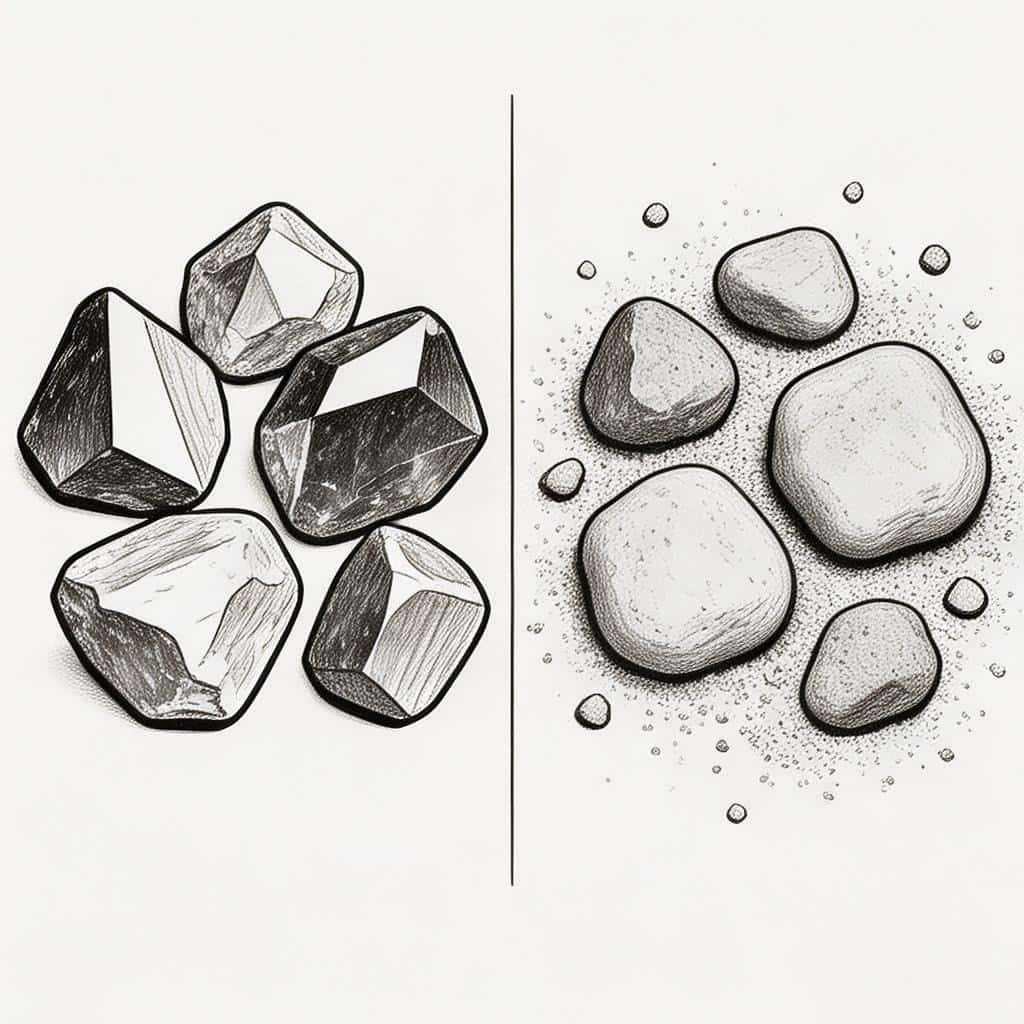

Fresh waterjet garnet is selected for particle-size distribution, dryness and cleanliness. During cutting, some grains fracture under pressure and impact. The used abrasive also picks up residue from steel, glass, stone, ceramic or composite materials.
That change matters inside the cutting stream. Finer recycled particles can reduce useful cutting action and make jet lag through the thickness more noticeable. The result may be slower cutting, more taper, rougher lower edges or less predictable small-part accuracy.

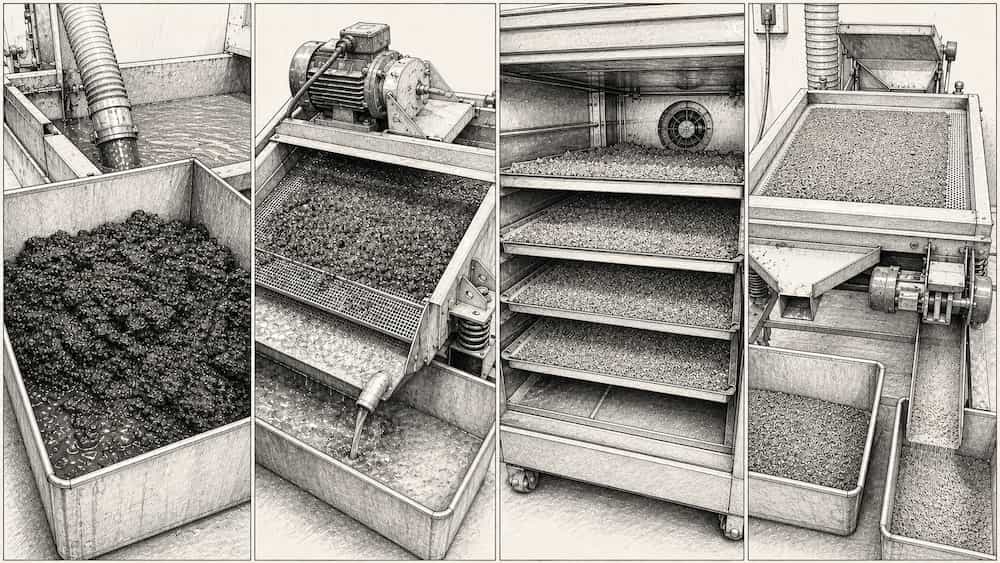

Drying removes water, but it does not restore the original grain size. It also does not remove fines, oversize debris or residue from the workpiece. A real reuse process would need washing, separation, drying, screening and trial cutting before the material could be trusted again.
Normal precision cutting
Use fresh, classified garnet for stable feed and edge quality.
Possible reuse
Only after controlled cleaning, drying, screening and a trial cut.
Better cost control
Tune abrasive flow, mesh selection and storage before trying recovery.
For most shops, recovered garnet is not worth feeding back into a precision waterjet. A small saving on abrasive can disappear quickly if the material causes unstable flow, extra operator cleaning or faster mixing tube wear.
Recovered material may still be evaluated for non-critical uses, but contamination and local disposal rules must be checked first. It should not be treated as new waterjet abrasive just because it still feels hard.
If the goal is lower cutting cost, start with a stable fresh garnet, dry storage and a controlled abrasive flow setting. For grade selection or batch documents, contact SEPPE with your machine type, material and current abrasive flow setting.
