Does Opening the Abrasive Control Valve Wider Slow Cleaning?

Views: 0     Author: SGA Blasting     Publish Time: 2026-11-17      Origin: SEPPE Garnet Team

How to Maximize Abrasive Blasting Efficiency

On a site where abrasive blasting is used for rust removal, when you notice the cleaning speed dropping or feel that the “abrasive cutting power” is insufficient, is your first instinct to open the abrasive control valve (metering valve) even further?

In practice, however, the result is often the exact opposite: opening the valve wider causes abrasive consumption to skyrocket and dust levels to surge, while the actual cleaning speed on the steel surface continues to decline.

Why Is Blasting Efficiency So Important?

A fundamental question arises: why do we place such high importance on blasting efficiency? The Bridge Coating Inspection Field Manual, published by the U.S. Federal Highway Administration (FHWA), notes that blast cleaning is one of the most time-consuming and costly stages in the bridge repainting process.

DNV’s article on corrosion in cargo and water ballast tanks cites DNV-CG-0288, which outlines methods, technical requirements, principles and acceptance criteria for corrosion protection on ships. For shipyards, controlling surface-preparation costs also requires careful consideration of actual operating efficiency and the subsequent burden of waste disposal.

This means that the unit price of the abrasive is rarely the primary factor in determining the total project cost. Instead, blasting efficiency is a core driver of expenses related to labor, equipment energy consumption and waste disposal.

How Should You Choose the Right Abrasive?

In open-air blasting operations, an abrasive must not only provide sufficient cleaning power but also offer particle stability, limit equipment wear and reduce the cleanup burden after the job is done.

In our comparison of garnet versus aluminum oxide abrasives, we discuss how garnet can provide a practical balance in open blasting. Its advantages can include controlled particle breakdown, a lower nozzle-wear burden, and less rework and dust cleanup under suitable operating conditions.

Two Considerations for Open Blasting

1. Abrasive recovery. In an enclosed blast room, abrasives can be collected, screened and processed through a recovery system, allowing particles that still meet the requirements to be reused. In shipyards, however, open blasting is often performed on hulls, decks or large steel structures. Used abrasive can become mixed with rust, old paint flakes, salts and other contaminants.

2. Excessive particle breakdown. During high-velocity blasting and impact, excessive breakdown produces more fine dust. This represents a loss of effective abrasive particles and may increase dust and surface-cleanup work. If fine particles remain or the surface does not meet the cleanliness required for coating, additional cleaning or even re-blasting may be necessary, increasing project time and waste-disposal costs.

These seemingly minor factors affect both the economic assessment of the abrasive and overall blasting efficiency.

How Can Blasting Efficiency Be Improved?

Blasting efficiency should not be measured solely by the quantity of abrasive consumed per hour. The focus should also be on how many effective working particles are produced after acceleration and impact, and how much waste is generated for disposal.

Abrasive Selection and Storage

Prioritize natural river garnet, such as SGA Garnet, with high hardness, angular particles and a low breakdown rate. The mesh size must also be matched to the thickness of the rust and the coating requirements. For example, 30/60 mesh is commonly used for anti-corrosion rust removal on carbon steel.

If the abrasive absorbs moisture and clumps together, it can cause an uneven feed rate or interruptions in the abrasive supply, disrupting the continuity of the blasting operation. Garnet abrasive should therefore be stored in a dry environment.

Equipment Optimization and Operating Parameters

If the air compressor, blast nozzle and operating parameters are not properly matched, the cleaning potential of the abrasive cannot be fully realized. In practical application, particular attention should be paid to the following parameters:

  1. Air Pressure: Ensure that the pressure at the nozzle meets the project requirements. Insufficient pressure will reduce particle velocity and cleaning efficiency.

  2. Nozzle Condition: Regularly inspect nozzles for wear and replace severely worn nozzles to prevent a drop in blasting efficiency and the waste of compressed air.

  3. Stand-off Distance: Adjust the distance between the nozzle and the steel surface according to the surface condition and abrasive characteristics. An unsuitable distance can affect the cleaning result.

  4. Blast Angle: Select an appropriate angle according to the degree of corrosion, the condition of the existing coating and the surface-preparation requirements.

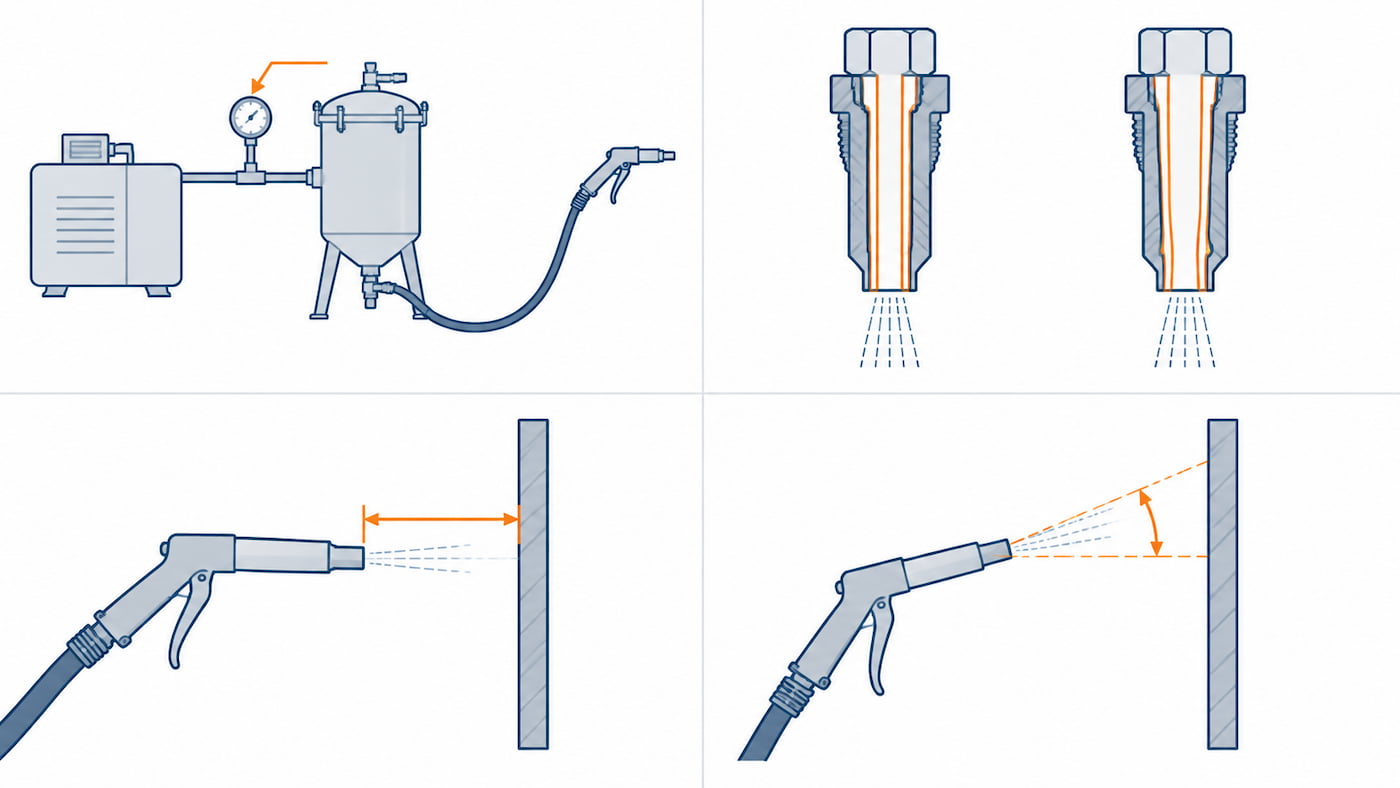

Air pressure, nozzle condition, stand-off distance and blast angle affecting abrasive blasting efficiency

Why Can Too Much Abrasive Lead to Slower Cleaning?

Pressure-fed dry abrasive blasting uses compressed air as a power source to accelerate abrasive particles through a nozzle. These particles strike the steel surface at high speed, removing rust, old coatings and other contaminants.

Blasting efficiency depends on a proper balance between the compressed-air supply and the abrasive feed rate. If the abrasive control valve is opened too wide, supplying more abrasive than the equipment and airflow can effectively accelerate, the particles may not reach the required velocity. This can reduce cleaning efficiency while increasing unnecessary abrasive consumption.

Do Not Equate Low Abrasive Consumption With the Lowest Cost

At the same time, one should not blindly strive for the lowest possible abrasive consumption. It is a mistake to assume that “saving abrasive” always means “saving money.” Low abrasive consumption does not necessarily translate into high overall efficiency.

Consider this simple example from a job site:

Illustrative comparison: same blasting task and required surface quality

Option A

Abrasive consumption: 100 kg

Operation time: 10 hours

Lower abrasive use, but slower cleaning.

Option B

Abrasive consumption: 130 kg

Operation time: 5 hours

Higher cleaning efficiency and a better surface result.

Illustrative example; actual results depend on the surface, equipment and operating conditions.

Although Option B uses 30 kg more abrasive, it cuts the project duration in half. When labor costs, air-compressor energy consumption, equipment rental and site-management expenses are considered, the total cost of Option B may be substantially lower than that of Option A.

In abrasive blasting projects, the true focus should not be on minimizing abrasive consumption alone. The goal is to achieve a practical balance between abrasive use, cleaning efficiency and waste-disposal cost while meeting the required surface-preparation quality.
