How Long Does Garnet Filter Media Last? And When to Replace It?

Garnet is a durable filter media. But like all consumables, it doesn't last forever. Knowing when to replace it saves you money and keeps water quality consistent.Under normal operating conditions – municipal or industrial water treatment with regular backwashing – SEPPE garnet typically lasts 3 to 5 years. Clean systems may go up to 8 years. Heavy solids or aggressive chemicals may shorten it to 2–3 years.



Actual life depends on incoming water quality, backwash frequency and intensity, and proper operation.





Signs It's Time to Replace

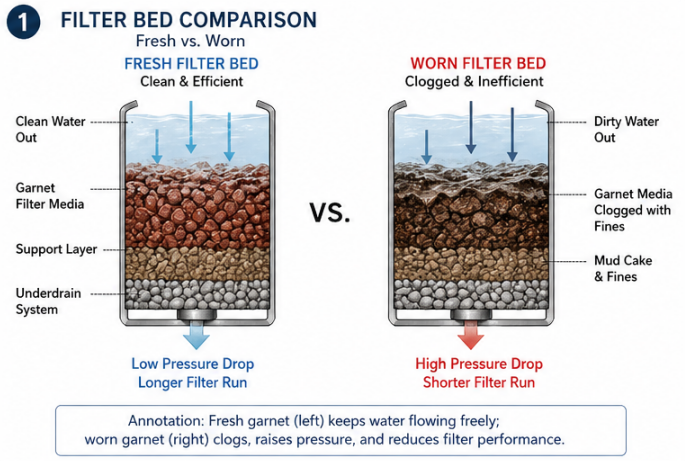

1.Higher pressure drop – Pressure increases at the same flow rate. Media is clogged beyond what backwashing can fix.

2.Poorer effluent quality – Water becomes cloudier. Media has lost its ability to capture fine solids.

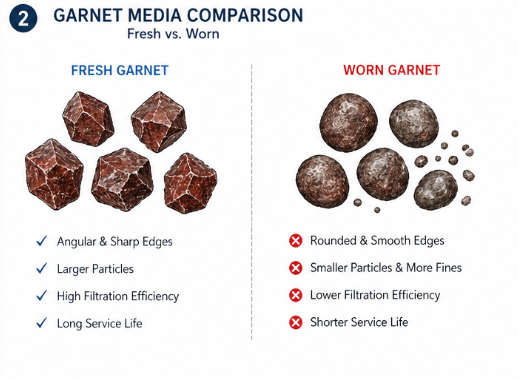

3.Media breakdown – Take a sample. If you see excessive fines or rounded grains instead of sharp, angular particles, the garnet is worn out.

4.Shorter filter runs – Time between backwash cycles drops significantly, often due to media loss or clogging.

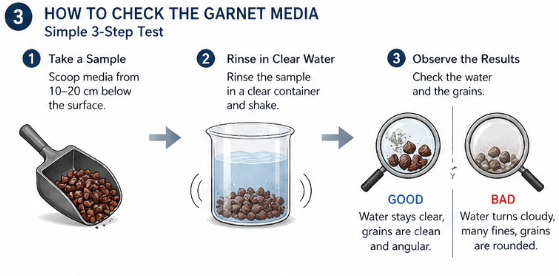

How to Check

Inspect the bed every 6–12 months. Scoop a sample from 10–20 cm below the surface and rinse it in clear water. If the water turns dark or shows many floating fines, or if the grains feel rounded compared to fresh SEPPE garnet, it's time to replace.

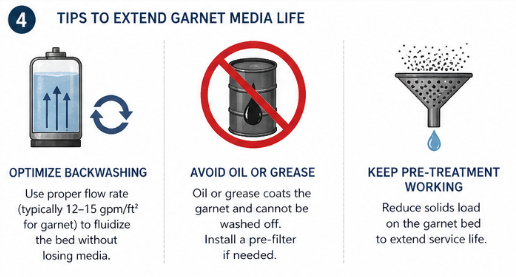

How to Extend Life

● Optimize backwashing – Use sufficient flow to fluidize the bed (typically 12–15 gpm/ft² for garnet), but not so high that media is lost.

● Avoid oil or grease – These coat garnet and cannot be washed off. Install a pre-filter if needed.

● Keep pre-treatment working – Reduce solids load on the garnet bed.

● Check distribution system – Uneven flow causes channeling, shortening media life.





When in Doubt, Test

When in doubt, run the simple test panel method described above. It's the most practical way to know if your garnet still works.

Summary

● Typical life: 3–5 years

● Replace when: pressure rises, effluent quality drops, media breaks down, or bed level falls

● Check: visual inspection and rinse test every 6–12 months

● Extend life: proper backwashing, avoid oil, maintain pre-treatment



For more guidance or to order replacement garnet, contact us at info@seppe.cn.
